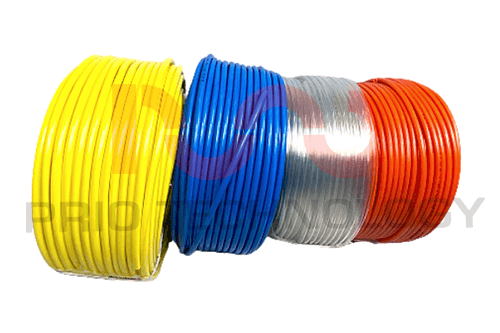

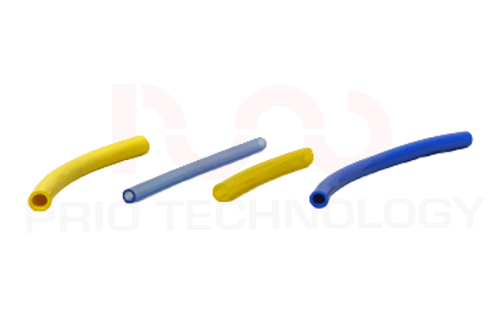

PU(Polyurethane) Tube

Excellent resistance to Oil, Grease, Aliphatic Hydrocarbons, Oxygen and Ozone.
Flexibility of PU tube is good under very low temperature.
Inner wall of PU tube is very smooth for transportation of air.
PU tube is much lighter than rubber.
Available in multi colors for easy identification.
In built meter marking for ready measure.
Operating temperature: 30°C - 70°C.
Transparent tube is with high grade of transparency so easy to see flowing medium.
The color tube has weather resistance pigment, the color is standard, bright, and with good fastness after long-time usage.
Sizes are available from 4mm OD T0 16mm OD

Size	Outer Side Diameter	In Side Diameter	Length	Working Pressure	Brusting Pressure	Bending Radius	Working Temp.
4 X 2.5	4 MM	2.5 MM	100 M	12 BAR	30 BAR	20 MM	-30~70
06 X 04	6 MM	4 MM	100 M	12 BAR	33 BAR	20 MM
08 X 05	8 MM	5 MM	100 M	12 BAR	28 BAR	25 MM
08 X 5.5	8 MM	5.5 MM	100 M	12 BAR	28 BAR	30 MM
08 X 06	8 MM	6 MM	100 M	12 BAR	33 BAR	30 MM
10 X 6.5	10 MM	6.5 MM	100 M	12 BAR	24 BAR	35 MM
10 X 08	10 MM	8 MM	100 M	10 BAR	27 BAR	35 MM
12 X 08	12 MM	8 MM	100 M	10 BAR	21 BAR	30 MM
12 X 9	12 MM	9 MM	100 M	6 BAR	10 BAR	25 MM
12 X 10	12 MM	10 MM	100 M	7 BAR	10 BAR	25 MM
14 X 10	14 MM	10 MM	50 M	10 BAR	24 BAR	30 MM
14 X 12	14 MM	12 MM	50 M	6 BAR	18 BAR	30 MM
16 X 12	16 MM	12 MM	50 M	10 BAR	30 BAR	30 MM
